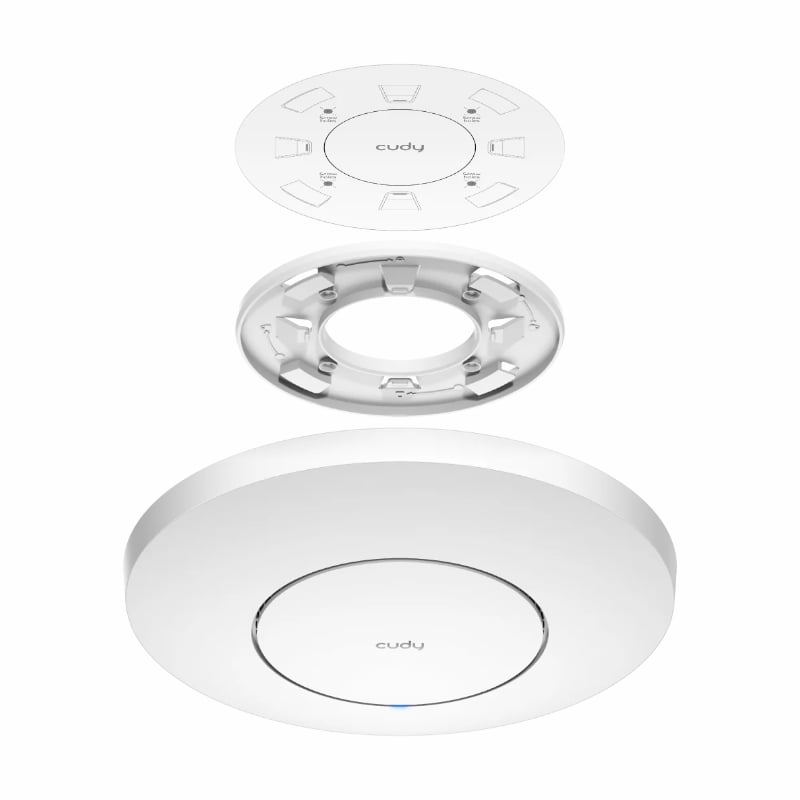

Cudy AX3000 2.5G Dual Band Ceiling Access Point

The Cudy AX3000 2.5G Dual Band Ceiling Access Point is an effective solution for transforming LAN networks into high-speed, dependable wireless networks. It has dual-band Wi-Fi 6 and supports both 2.4GHz and 5GHz frequencies, with speeds of up to 867Mbps on the 5GHz band. With a 1.3 GHz dual-core CPU and plenty of RAM, it uses UL/DL MU-MIMO and OFDMA technologies to reduce transmission latency, ensuring smooth performance for multiple devices. Its five antennas, 3+2 structure, and beamforming technology improve signal strength and coverage by directing the signal to connected devices.

The shielded 2.5G Ethernet port enables simultaneous streaming by multiple devices without buffering, even in high-interference environments. PoE support simplifies installation by eliminating the need for extra power cables. Customisable login pages boost brand awareness, and the device’s 130 m² coverage and capacity for 200 devices make it ideal for high-density environments. Convenient features such as Watchdog, Schedule Reboot, and easy mounting increase its appeal to businesses looking for reliable, high-performance wireless networking solutions.

FEATURES:

• 5-Stream Dual-Band Wi-Fi 6
• 1× Shielded 2.5GbE PoE In
• 802.3at, Passive PoE, DC
• Watchdog, Schedule Reboot
• Covers 130 m² (1,400 ft²) with 5-Stream
• 200 Connected Devices

SPECIFICATIONS:

• CPU: 1.3 GHz Dual-Core CPU
• Chipset: MT7981BA
• Flash: 256 MB (2 Gbit) NAND
• DDR: 512 MB (4 Gbit) DDR4
• Wireless:
• 5 GHz Wi-Fi Speed: 2402Mbps
• Wi-Fi Bands: EU + DFS, US + DFS
• 2.4 GHz Wi-Fi Speed: 574 Mbps
• 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)
• 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 5× Internal
• 5 GHz Antenna Gain Max: 5.6 dBi
• 2.4 GHz Antenna Gain Max: 4.8 dBi
• FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
• Range Performance: Max: 130 m (427 ft)
• Interfaces:
• 2.5G RJ45 Ports: 1
• Ethernet Notes: Accepts PoE powering
• LED: System
• Physical Buttons: Reset Button
• Power Input: DC Jack, PoE via Ethernet Port
• Power:
• Power Methods: DC, 802.3at/af PoE, Passive PoE
• DC: 12V 1.5A
• Passive PoE: 48 ~ 57V
• Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC/Output: 12V 1.5A DC
• Max Power Consumption (W): 12 W (48 V PoE) 12 W (DC)
• Idle Power Consumption (W): 6.1 (48 V PoE) 6.1 W (DC)
• Reliability:
• System Stability: Watchdog
• ESD Air Protection: 4kV
• ESD Contact Protection: 8kV
• Environment: Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Installation: Wall-Mounting, Ceiling-Mounting

WHAT’S IN THE BOX:

• Cudy AX3000 Dual-Band Ceiling Access Point – White x1
