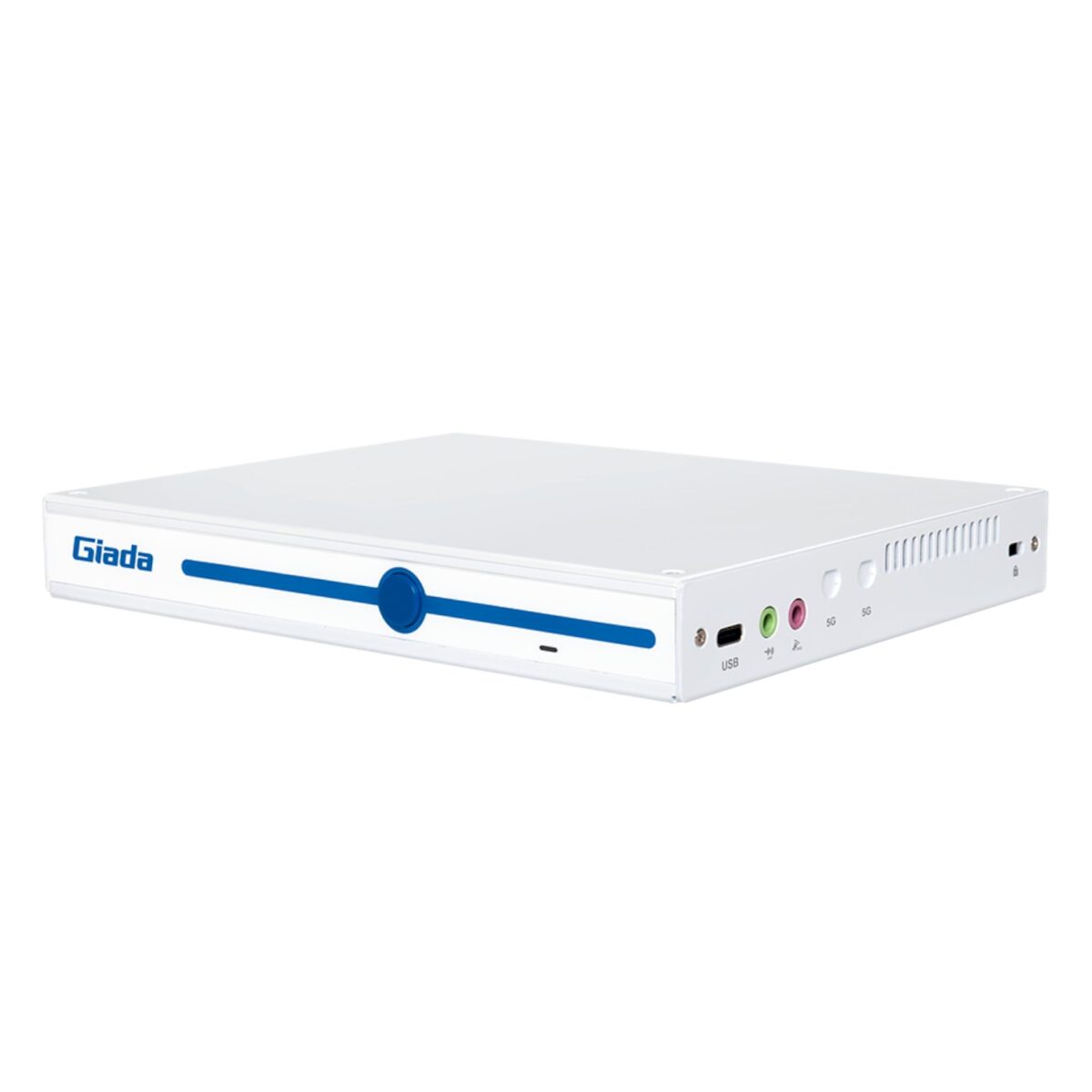

Giada H611 I5-11300H High-end Medical Computer

The Giada H611 High-End Medical Computer is engineered to meet the demanding requirements of today’s healthcare environments. Compliant with IEC 60601-1 and EN 60601-1 medical safety standards, this ultra-thin PC is the perfect fit for hospitals, clinics, and medical institutions seeking high-performance, secure computing in critical applications. Powered by Intel’s 11th Gen Tiger Lake UP3 processors, specifically the Core i5-11300H, the H611 delivers exceptional speed and responsiveness, supported by a robust 35W thermal design power (TDP) that balances efficiency and power for continuous medical workloads.

Integrated with Intel® Iris® Xe graphics, the H611 offers a 50% improvement over the previous generation, enabling smooth 4K and even 8K visual output for diagnostic imaging and multi-monitor setups. Display support includes one DisplayPort 1.4 for up to 8K @60Hz and dual HDMI 2.0 outputs for simultaneous 4K @60Hz playback. Whether managing medical imaging software or patient data, the H611 provides the clarity and capability required in professional medical environments.

The unit supports 32GB DDR4 3200MHz memory across dual SO-DIMM slots and integrates a PCIe M.2 SSD slot for high-speed storage, ensuring fast boot times and quick data access. For next-generation connectivity, the H611 includes support for 5G via a Quectel RM50XQ module, enabling ultra-fast mobile broadband ideal for telehealth and remote patient monitoring systems. Additionally, Wi-Fi 6 and Bluetooth® support ensures seamless wireless integration in modern hospital networks.

The H611 is fortified with Infineon TPM 2.0, delivering hardware-based encryption and secure boot functionality to protect sensitive patient data and medical records. The rugged metal chassis in medical-grade white is compact (just 18.96 x 14.83 x 2.6 cm), making it ideal for space-limited installations on medical carts or in wall-mounted solutions.

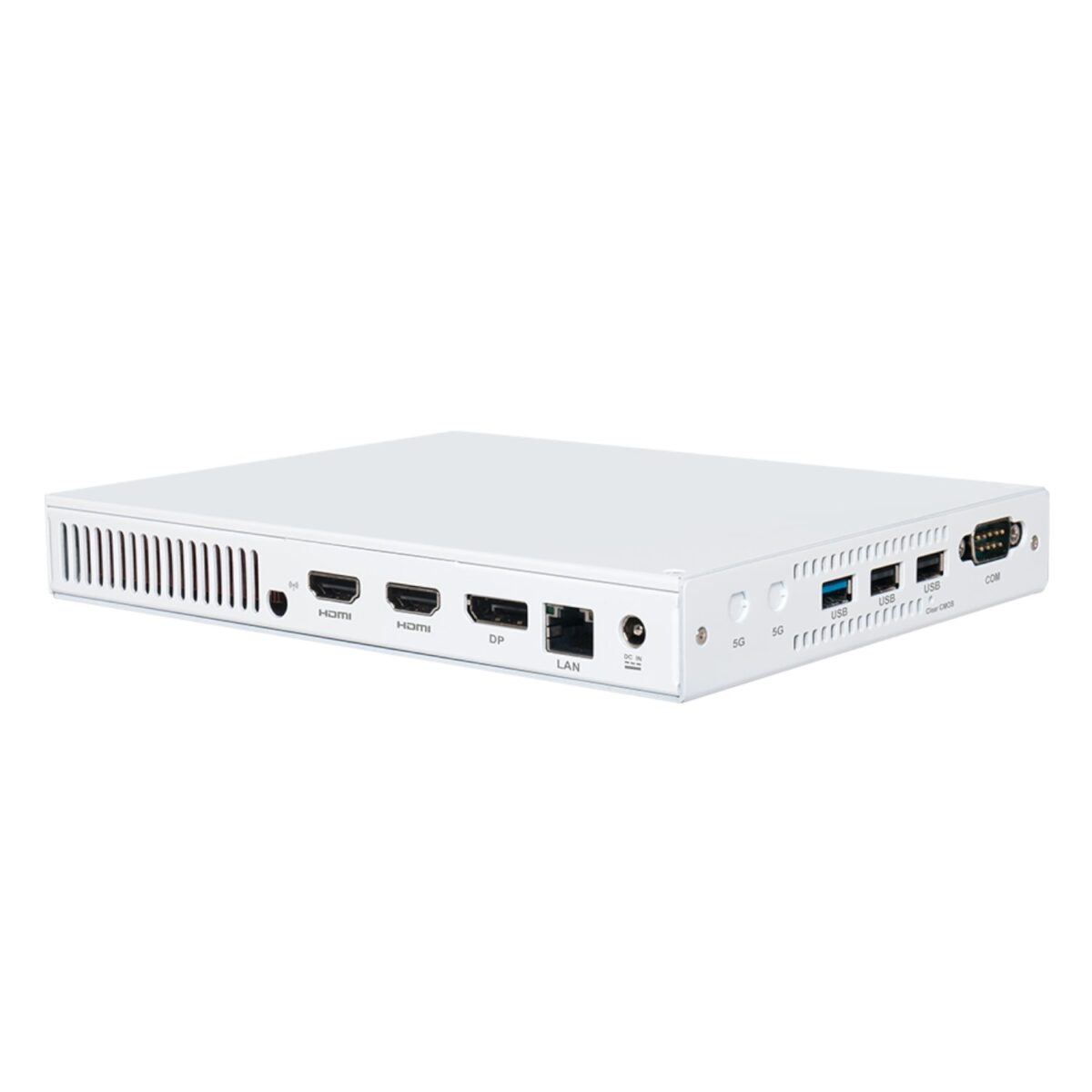

The system features comprehensive I/O ports, including USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, legacy RS232 serial support, audio jacks, and robust antenna support for wireless modules. With auto power-on, watchdog timer, and customizable RTC scheduling, the H611 ensures reliability in always-on healthcare applications.

FEATURES:

• Designed for Medical IEC Standard Compliant
• Intel 11th Gen Tiger Lake Core Processors
• Supporting 8K Display and 4K Video Playback
• Support 5G Mobile Network
• Trusted Platform Module Reliable Security Protection

SPECIFICATIONS:

• CPU:
  • CPU: Intel Core i5-11300H processor
  • Base Frequency : 3.10 GHz /3.40 GHz
  • Turbo Frequency: 4.40 GHz /5.00 GHz
  • Chipset: SoC
  • Processing Units: 4 Cores /4 Cores
  • Configurable TDP-up: 35 W/ 35 W
• Memory:
  • Size: Up to 32 GB
  • Type: 2 x SO-DIMM DDR4-3200 MHz
• Storage:
  • Socket 1: 1 x M-Key M.2 (2242/2280) for PCIe SSD
• Display:
  • GPU: Intel® IRIS® Xe Graphics
  • Graphic Engine: DirectX 12.0, OpenGL 4.5, OpenCL 2.2, 8K60 12b 4:2:0 HEVC/VP9/SCC
  • Display Interface: 1 x DP (Max.7680 x 4320 @60 Hz) | 2 x HDMI (Max.4096 x 2304 @60 Hz)
• Network:
  • Network Controller: 1 x Realtek RTL 8111H Gigabit Ethernet
  • Ethernet Interface: 1 x RJ45
  • Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6 (CNVi)
  • Mobile Network: 1 x B-Key M.2 (3042/3052) for 3G/4G/5G, 1 x SIM Slot
• I/O interface:
  • USB: 1 x USB Type-C3.2 Gen2, 1 x USB3.2 Gen2, 2 x USB2.0
  • Serial Port: 1 x RS232
  • Audio: 1 x MIC-IN, 1 x AUDIO-OUT
  • Button: 1 x Power on, 1 x CLR-CMOS
  • Antenna: 1 x Connector for Wi-Fi/BT | 4 x Connector for 5G (Reserved)
• System:
  • TPM: TPM2.0
  • Watchdog Timer: Yes
  • Auto Power On: Yes
  • RTC: Set up independently every day, a week as a cycle
  • Remo on: NA
  • Power Requirement: DC-IN, 19 V/3.42 A
  • Dimensions: 18,96 x 14,83 x 2,6 cm
  • Construction: Metal, White
  • Operating System: Windows 10 (64bit) /Windows 11 (64bit) /Linux Ubuntu (64bit)
  • Operating Temperature: 0°C ~45°C @0.7m/s Air Flow
  • Humidity: 95% @ 45°C (non-condensing)
  • Certifications: IEC/EN60601-1 | CE, FCC Class B

WHAT’S IN THE BOX:

• Giada H611 I5-11300H High-end Medical Computer – White x1
• Wi-Fi Antenna x1
• AC Power Cable x1
• AC Power Adapter x1
