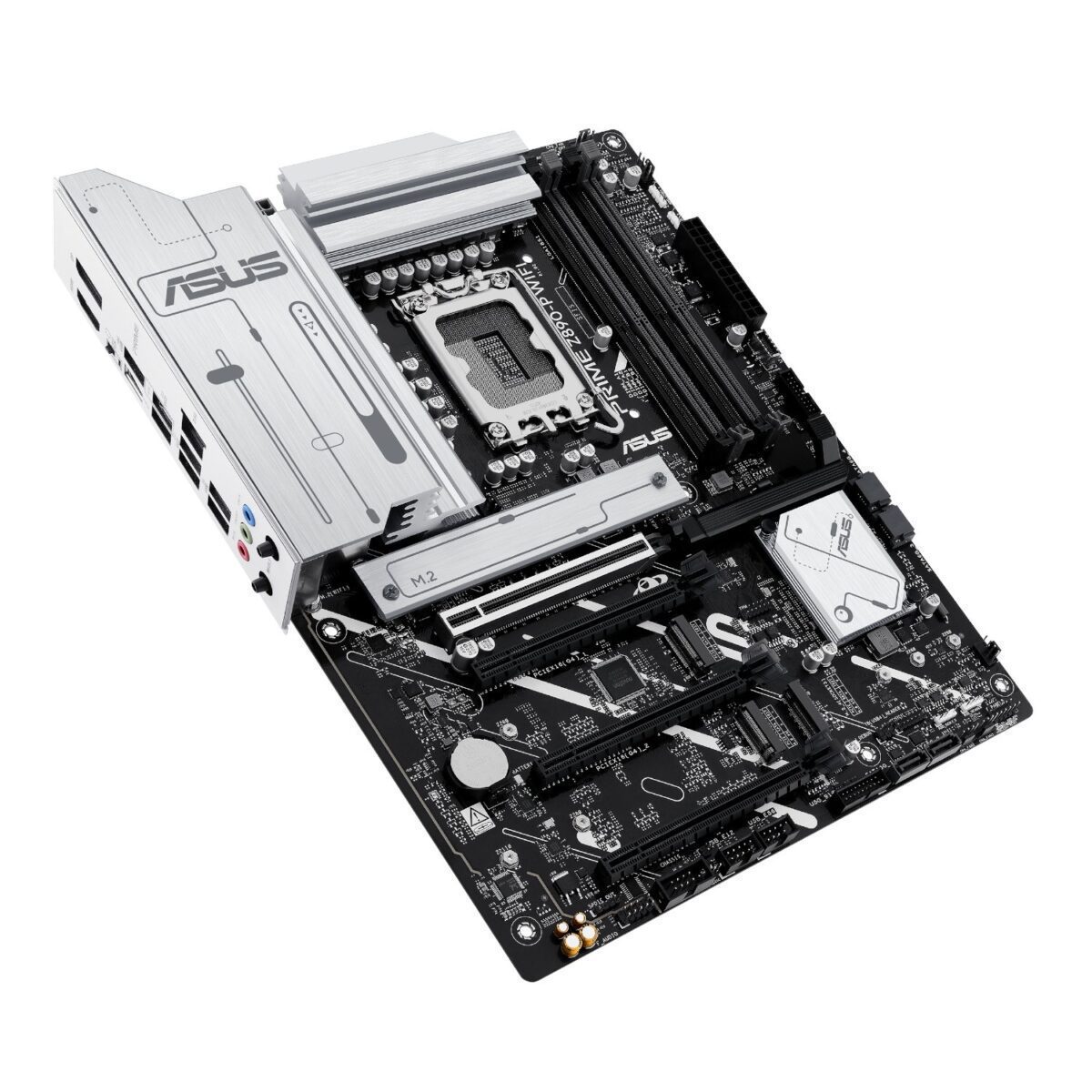

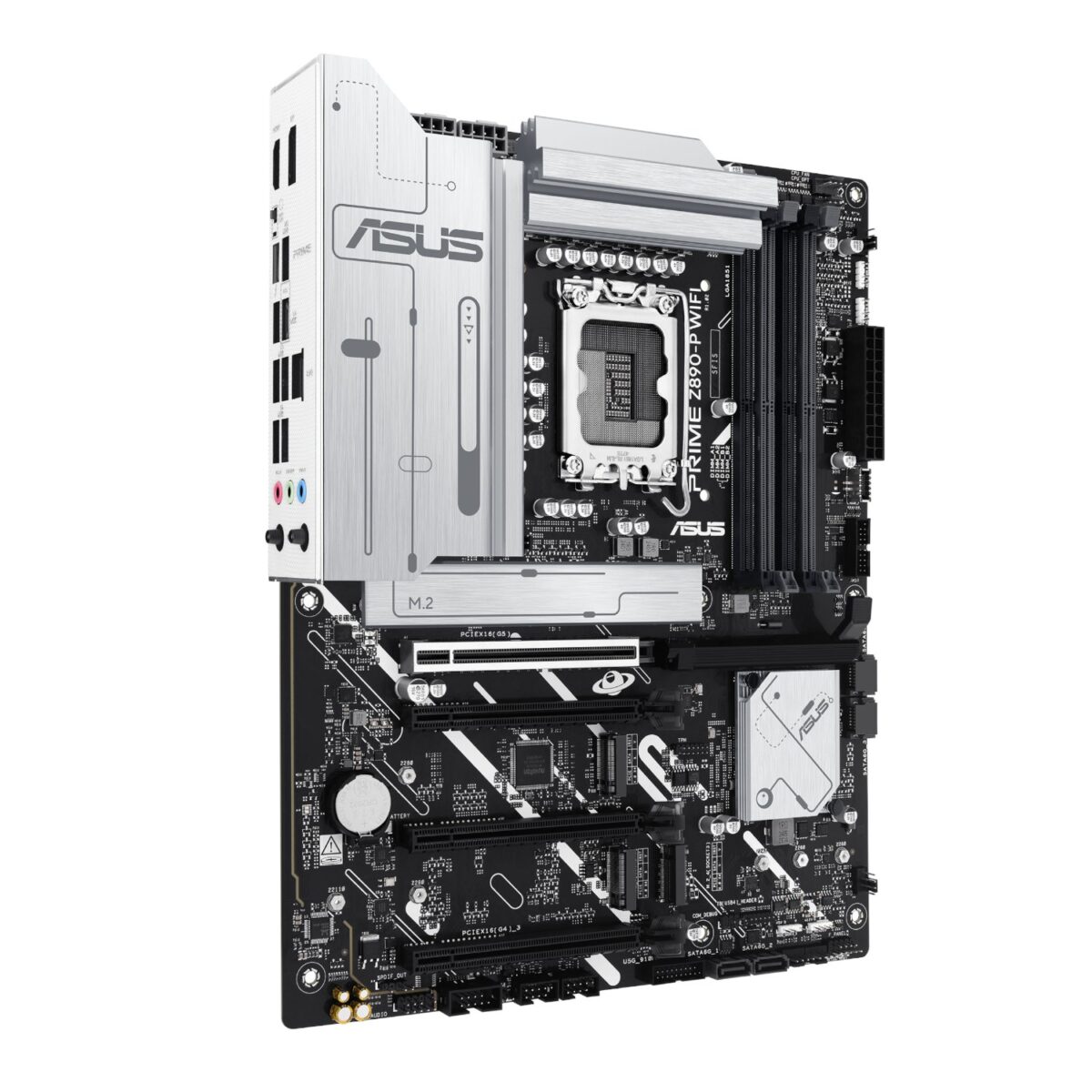

Asus PRIME Z890-P WIFI ATX Gaming Motherboard

The ASUS PRIME Z890-P WIFI ATX Motherboard is expertly engineered to unlock the full potential of the latest Intel® Core™ Ultra Processors (Series 2) on the LGA1851 platform. With robust power delivery, advanced thermal architecture, and intelligent performance tuning, this motherboard is tailored for high-performance computing, gaming, and demanding AI-driven workflows. It’s designed to be Advanced AI PC-ready, featuring integrated ASUS AI Solutions including AI Advisor, AI Cooling II, and AI Networking II—empowering users with smart automation for peak PC efficiency and stability.

Thanks to support for Intel’s integrated Neural Processing Unit (NPU), the PRIME Z890-P WIFI takes AI acceleration to the next level with NPU Boost, enabling up to 24% performance gains with a single click in BIOS. Memory tuning is redefined with ASUS Enhanced Memory Profile III (AEMP III) and DIMM Fit, which dynamically optimize cutting-edge DDR5 modules up to 8666+ MT/s (OC) for unbeatable stability and responsiveness. Whether you’re overclocking, editing 4K video, or running AI-enhanced tasks, this board ensures seamless operation and exceptional speed.

Equipped with four M.2 slots, including one ultra-fast PCIe 5.0 slot supporting up to 128Gbps, and three PCIe 4.0 slots at 64Gbps, the PRIME Z890-P WIFI delivers blazing boot times and quick access to data-heavy applications. The inclusion of Thunderbolt™ 4 and Wi-Fi 7 offers premium connectivity options for high-speed peripherals, external 8K displays, and the latest networking gear. Backed by Realtek 2.5Gb Ethernet and ASUS LANGuard, the board ensures low-latency and high-bandwidth wired connections for streaming, gaming, and content creation.

Thermal management is handled with precision through a suite of VRM heatsinks, a passive chipset cooler, hybrid fan headers, and an AiO pump header, all adjustable via Fan Xpert 4 with AI Cooling II. ASUS Q-Design innovations and intuitive BIOS tools streamline the building process, making it easier for enthusiasts and beginners alike. Customization is made seamless with Aura Sync RGB lighting and Gen 2 addressable headers, allowing users to coordinate lighting effects across compatible components. Whether you’re assembling a cutting-edge AI workstation or a futureproof gaming setup, the PRIME Z890-P WIFI delivers intelligent performance with effortless style.

FEATURES:

• Intel® LGA 1851 socket: Ready for Intel® Core™ Ultra Processors (Series 2)
• Next-gen connectivity: Wi-Fi 7, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, Thunderbolt™ 4, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
• ASUS Enhanced Memory Profile III(AEMPIII) for enhanced DDR5 performance
• ASUS Q-Design and EZ PC DIY for easily connecting and customizing your hardware
• Comprehensive Cooling: VRM heatsink, Passive chipset heatsink, hybrid fan headers and AiO pump header
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers, easily synced with Aura Sync-capable hardware

SPECIFICATIONS:

• Socket: LGA1851
• CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
• Chipset: Intel® Z890 Chipset
• DDR5 Memory: Support 8666+MT/s (OC) Non-ECC, Un-buffered Memory, Supports Intel® Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile III(AEMPIII)
• Memory Channel: Dual
• DIMM Slots: 4
• Max Memory (GB): 256
• PCI-E 5.0 x16: 1
• PCI-E 4.0 x16: 3
• SATA 6G: 4
• M.2 Slot: 4
• LAN: Realtek 2.5Gb Ethernet, ASUS LANGuard
• Wireless and Bluetooth: Wi-Fi 7, 2×2 Wi-Fi 7 (802.11 be), Supports 2.4/5/6GHz frequency band, Bluetooth v5.4

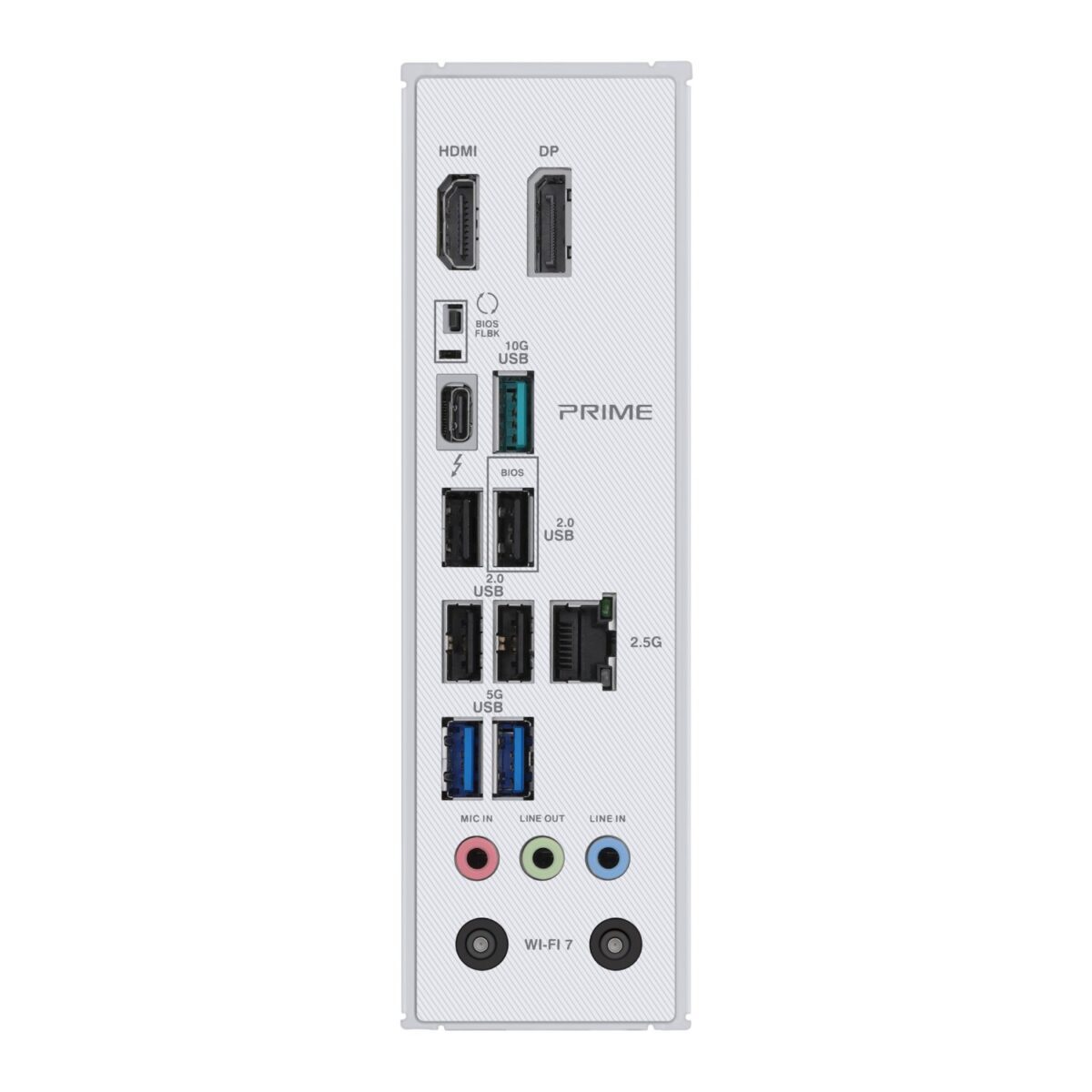

• USB Ports Rear:
  • 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 2 x USB 5Gbps ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
• USB Ports Front:
  • 1 x USB 10Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio ports (Rear): Realtek 7.1 Surround Sound High Definition Audio CODEC
• HDMI: 1
• DisplayPort: 1
• Intel® Thunderbolt™ 4 (video output): 1
• DirectX: 12
• Form Factor: ATX
• Operating System: Support for Windows 11 (22H2 & later)

WHAT’S IN THE BOX:

• Asus PRIME Z890-P WIFI ATX Gaming Motherboard – Black x1
• SATA 6Gb/s Cables x2
• Asus Wi-Fi Q-Antenna x1
• M.2 Rubber Package x1
• Screw Packaging for M.2 SSD x2
• Quick Start Guide x1
