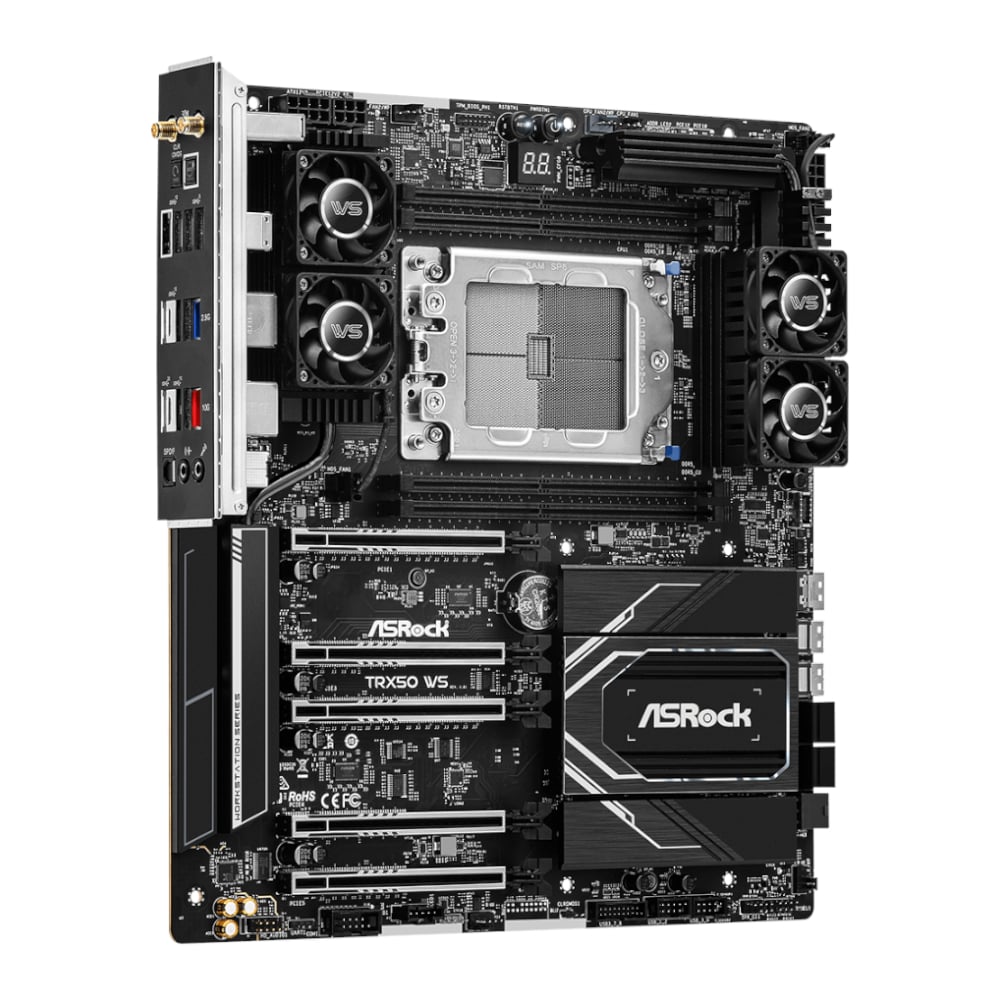

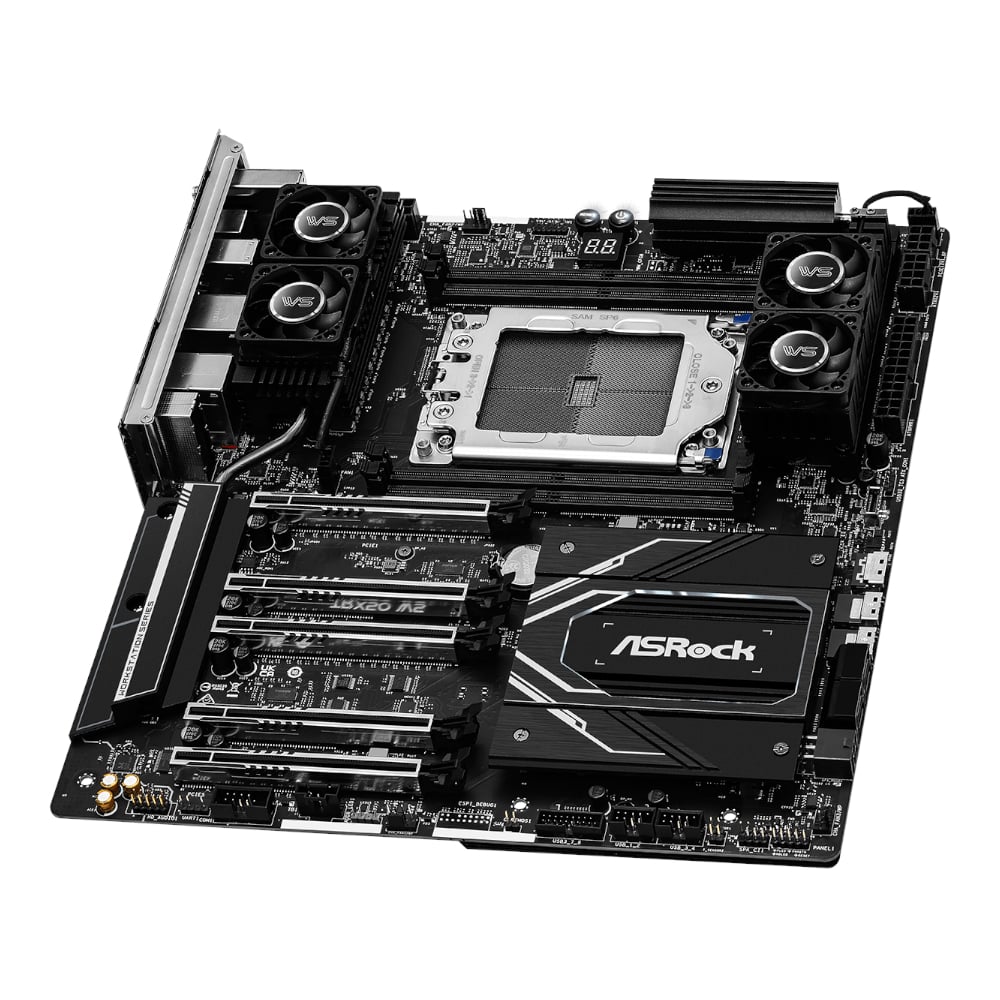

ASRock TRX50 WS AMD TR5 EATX Gaming Motherboard

The ASRock AMD TRX50 WS AM5 EATX Gaming Motherboard is a high-performance, workstation-class motherboard engineered for intensive computing environments, providing powerful manageability and reliability. Built with a server-grade, low-loss PCB, this motherboard enhances signal integrity and supports PCIe 5.0 for both graphics cards and M.2 SSDs, unlocking extreme performance potential. Designed for demanding applications like deep learning, rendering, and simulation, the TRX50 WS is compatible with AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series processors, bringing elite computing capabilities to professional setups. Its impressive 18+3+3 power phase design and 110A SPS for VCore ensure efficient and stable power delivery to support top-tier performance.

Equipped with an XXL aluminum heatsink, active cooling fans, and heat pipes, the TRX50 WS motherboard provides advanced thermal management to maintain peak operation under heavy loads. Supporting up to 1TB of DDR5 RDIMM ECC memory, it allows for extreme memory performance and overclocking while also automatically detecting and correcting data errors to reduce system crashes. The board’s Blazing M.2 slots accommodate PCIe 5.0 SSDs with speeds up to 128Gb/s, preparing it for next-generation storage. Additionally, SlimSAS (SFF-8654) and MCIO server-grade connectors support stable and scalable storage expansions, ideal for users who require fast, reliable access to large data files.

Networking and connectivity are robust, featuring Marvell 10 GbE and Realtek 2.5 GbE LAN ports for ultra-fast file transfer speeds to local servers, NAS, or cloud storage. With Wi-Fi 6E providing access to the 6GHz spectrum, users benefit from faster internet speeds, lower latency, and performance equivalent to 5G networks. USB 3.2 Gen2x2 Type-C delivers 20Gbps transfer rates, doubling the speed of previous generations. For audio, Nahimic technology offers vibrant, detailed sound, enhancing the experience whether using headphones, external speakers, or HDMI. The TRX50 WS also includes onboard RGB and addressable headers, fully customizable with Polychrome RGB Sync to create unique lighting effects, making it an ideal solution for gamers, creators, and power users alike.

FEATURES:

• Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
• 18+3+3 Power Phase Design, 110A SPS for VCore
• 4 x DDR5 DIMMs Support Quad Channel ECC Registered memory, up to 7600+ (OC)
• 3 PCIe 5.0 x16, 2 PCIe 4.0 x16
• Marvell 10 GbE LAN, Realtek 2.5 Gigabit LAN
• 802.11ax Wi-Fi 6E + Bluetooth
• Realtek ALC1220 7.1 CH HD Audio

SPECIFICATIONS:

• Socket: AMD Socket sTR5
• CPU: Supports AMD Ryzen™ Threadripper™ PRO 7000 and AMD Ryzen™ Threadripper™ 7000 Series Processors
• Chipset: AMD TRX50
• DDR5 Memory: Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
• Memory Channel: Quad Channel DDR5 Memory Technology
• DIMM Slots: 4
• Max Memory Support: 1TB
• PCI-E:
  • 3 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE4 at x8)
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
  • 1 x PCIe 4.0 x16 Slot (PCIE5), supports x8 mode
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 mode
  • 4 x SATA3 6.0 Gb/s Connectors
• RAID: 0/1/10
• LAN: 1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell AQC113), 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
• Wi-Fi and Bluetooth: AMD Wi-Fi 6E

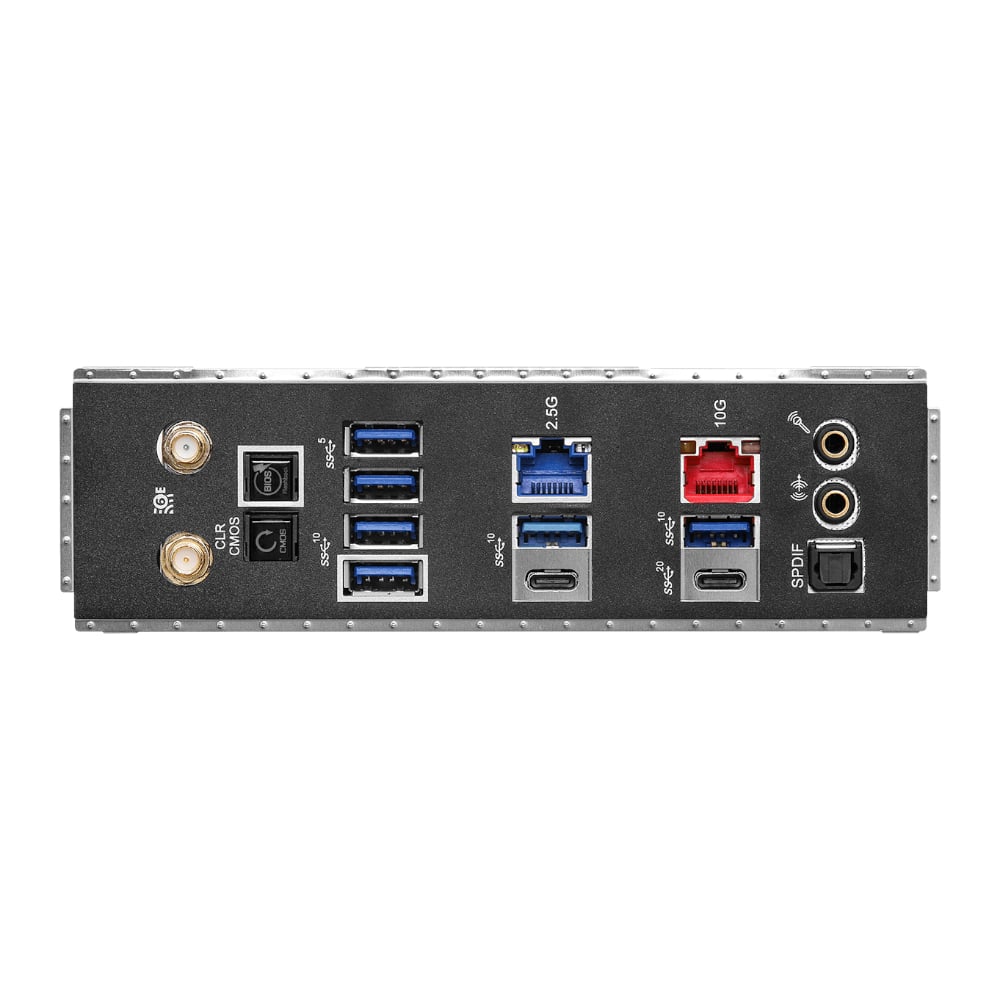

• USB Ports:
  • CPU:
  • 1 x USB 3.2 Gen2x2 Type-C (Rear)
  • 4 x USB 3.2 Gen2 Type-A (Rear)
  • Chipset:
  • 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
  • 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  • 4 x USB 2.0 (Front)
• Audio ports (Rear): Realtek ALC1220 Audio Codec (7.1 CH HD Audio)
• DirectX: 12
• Form Factor: EATX
• Operating System: Support for Windows® 11 64-bit

WHAT’S IN THE BOX:

• ASRock AMD TRX50 WS AM5 EATX Gaming Motherboard x1
